Bulb Dimmable
Yes-Dimmable
Bulb Kelvin
3500K/4000K/5000K
Harmonized Codes
8539.52.0051
Warranty
5 Year Limited - T8 LED Bulbs
Ballast Bypass Direct
Dual
Ballasting Requirements
Ballast required (Type A) or Ballast Bypass (Type B)
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Neutral White to Natural Light
Dimmable Function
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Classification
Standard
DLC Primary Use
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy
139.58/140.63/141.67 LPW
Feature 1
CCT Selectable - 3500K/4000K/5000K
Feature 2
Direct replacement for fluorescent T8 lamps
Feature 3
Ballast compatible or ballast bypass installation
Feature 4
NSF Certified - P.E.T. coated, shatter resistant glass tube
Feature 5
Compatible with select emergency backup and dimming ballasts
Feature 7
Rated for 50,000 hours
Flourescent Equivalent
32W
Incandescent Equivalent
50W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type A/B
Lamp End Type
Single Ended;Double Ended
Long Description

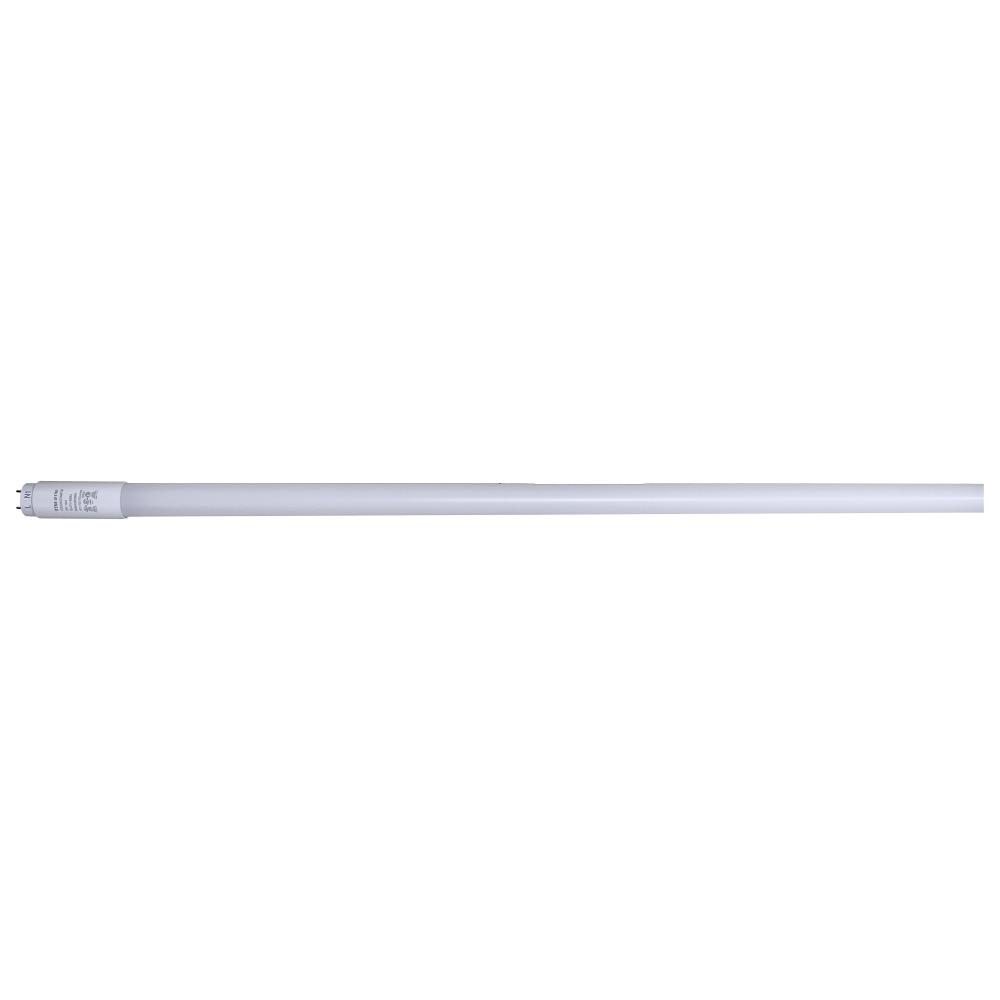

SATCO|NUVO's S11761 premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. This lamp is compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of insta
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Romance Copy
SATCO|NUVO's premium LED T8 dual mode lamps offer the most versatility of any linear replacement lamp on the market. These lamps are compatible with ballasts and in ballast bypass systems with single or double-ended wiring to maximize ease of installat
Shatter Proof Text
PET Coated
Short Description
12T8/LED/36-CCT/DM/BP-DR
Surge Protection
Built-in-surge protection - 0.7KV
