Bulb Dimmable
Non-Dimmable
Harmonized Codes
8539.52.0051
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Sign
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Bulb Base
Recessed Double Contact HO/VHO
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Cool White
Enclosure Rating
Enclosed Rated Lamp
Feature 1
MOL: 93.88 inches, MOD: 1.00 inch
Feature 2
Superior 83 CRI light quality, 5000 lumens, 4000K cool white light, with a 360 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp location rated
Feature 5
36 watt LED replaces 113 watt fluorescent
Feature 6
Frost finished linear plastic bulb
Feature 7
LED energy efficient fixture
Feature 8
5 Year Limited Warranty
Flourescent Equivalent
110W
Incandescent Equivalent
125W
Installation Notes
Not for use in vapor tight fixtures. No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended
Long Description

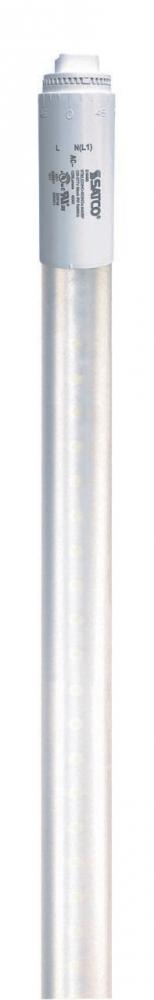

Satco's S16410 36 watt T8 LED Type B single ended ballast bypass linear lamps with powerful lumen output and long lasting superior light is designed for use in commercial settings and the illumination of signs. The frost bulb features a recessed double
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Romance Copy
Satco's 36 watt T8 LED Type B single ended ballast bypass linear lamps with powerful lumen output and long lasting superior light is designed for use in commercial settings and the illumination of signs. The frost bulb features a recessed double contac
Short Description
36T8/LED/HO-SIGN/96-840/BP
