Additional Info
Driver Specs - VDC38-48V; 430/620/810mA
Bulb Shape1
Integrated LED
Color Temperature
Warm to Cool White
Warranty
5 Year Limited - Fixtures
Amps
0.200-0.058/0.300-0.086/0.400-0.115A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Standard
DLC Primary Use
2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces
Efficacy
110.00/113.33/115.00 LPW
Feature 1
3500K/4000K/5000K CCT Selectable
Feature 2

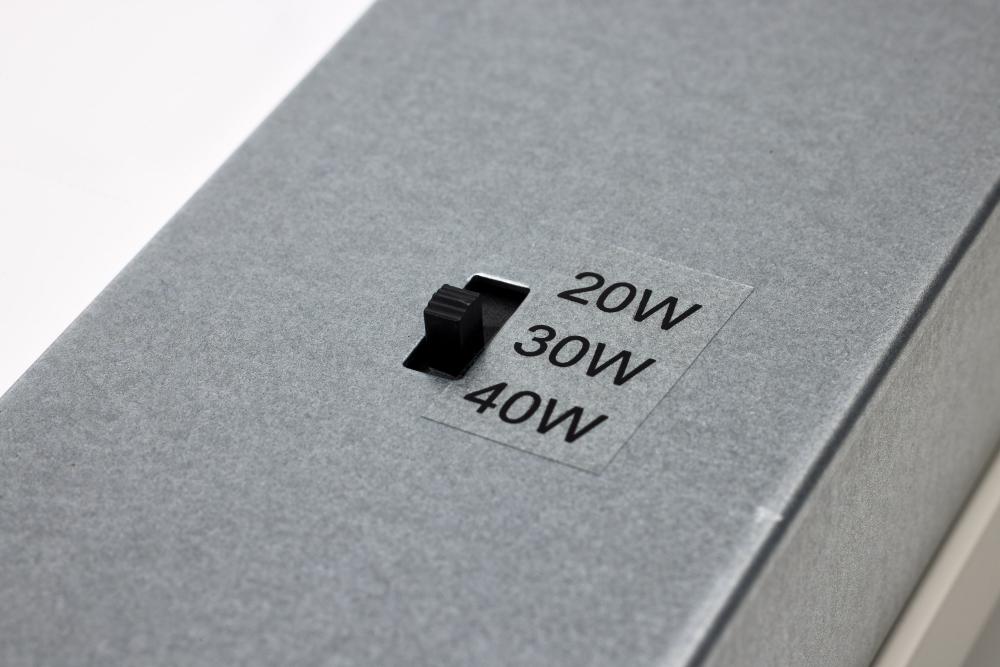

20W/30W/40W Wattage Selectable
Feature 3
Higher 120-347 Voltage Range
Feature 4
Flicker Free, Even Light Distribution
Feature 6
50,000 average rated hours of use
Incandescent Equivalent
100W-150W
Lens Material
Poly methyl methacrylate (PMMA)
Long Description
SATCO|NUVO's LED Backlit 2x2 Flat Panel 65-581R1 features our new ColorQuick and PowerQuick technologies. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configurations at t
Material
Aluminum / Steel
Mounting Procedure
Ceiling
Operating Frequency
50/60Hz
Operating Temp
-17C (+1.4F) to +45C (+113F)
Replaceable Light Source
No
Romance Copy
SATCO|NUVO's LED Backlit Panel fixtures feature our new ColorQuick and PowerQuick technologies in a variety of sizes. With three popular wattages and three different CCT options available, customers can choose from nine possible power and color configu
Safety Listing
cETLus - Listed
Short Description

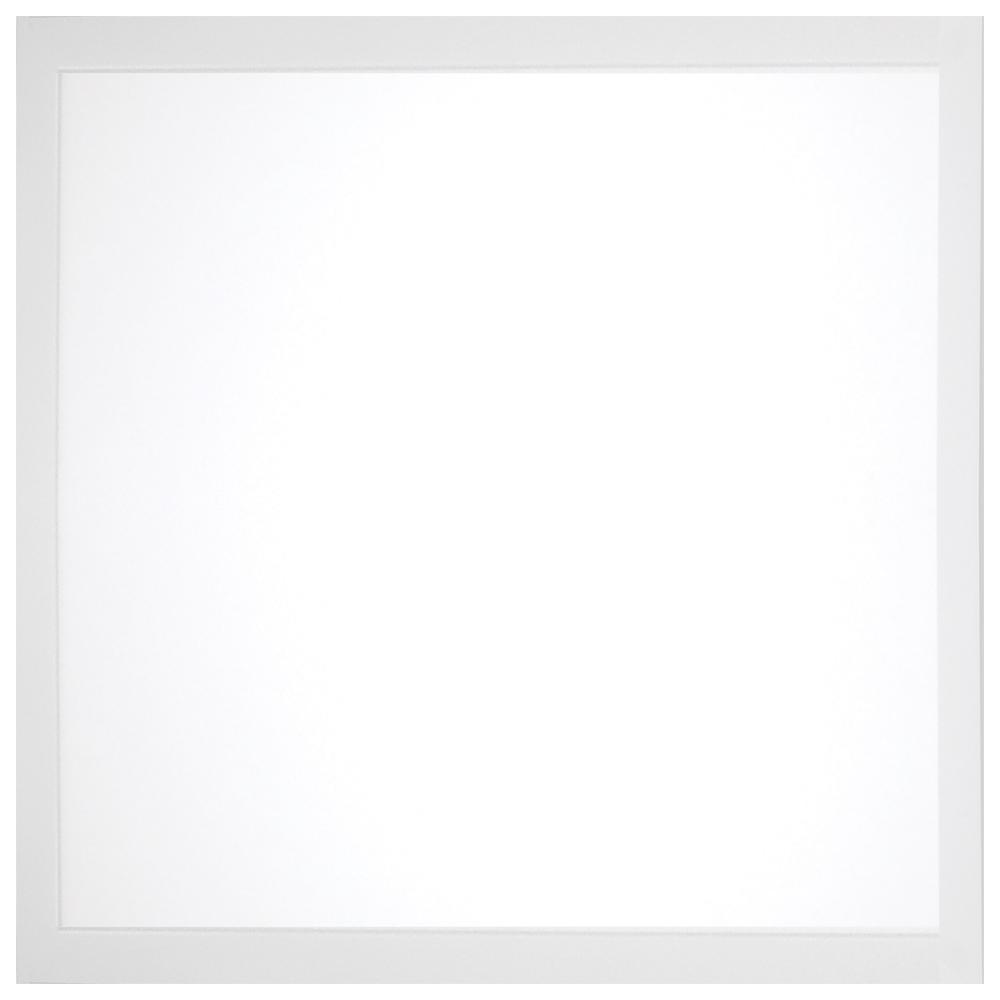

2X2 LED BACKLIT FLAT PANEL
Temperature (CCT)
3500K/4000K/5000K
Total Harmonic Distortion
19%
Wire Temp Rating
80C (176F)
