Atom 30" LED Fan
Image may not reflect selected features
/vendors/87/large/906030fmb-lda_atom.jpg
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image
additional image

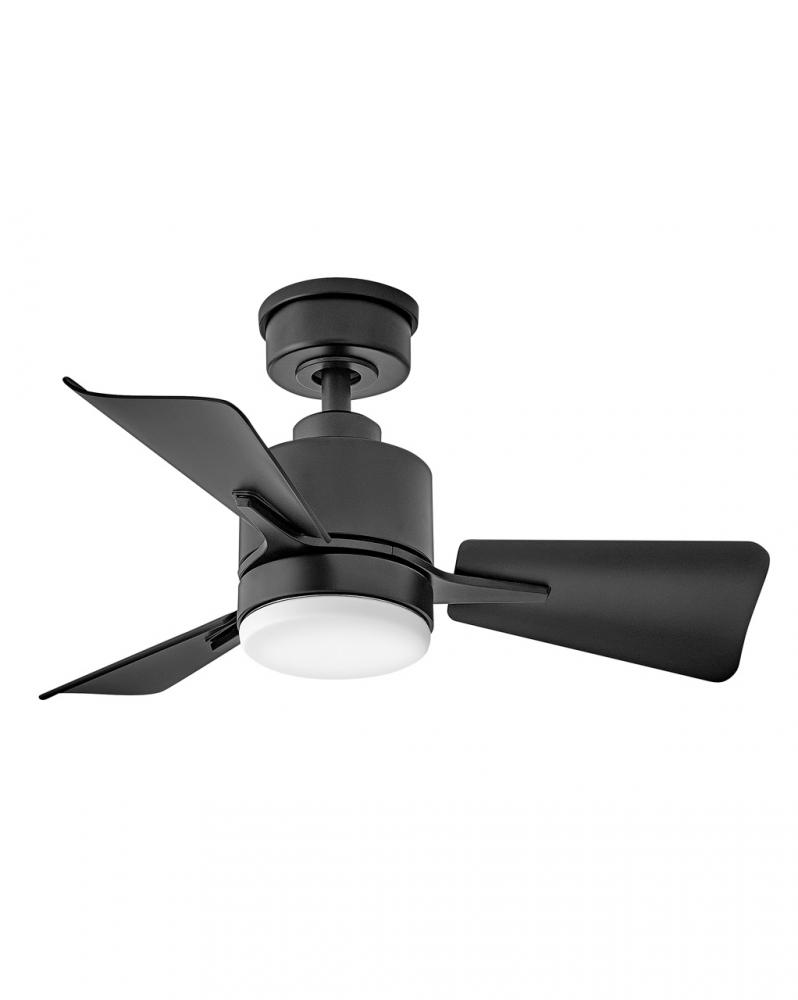

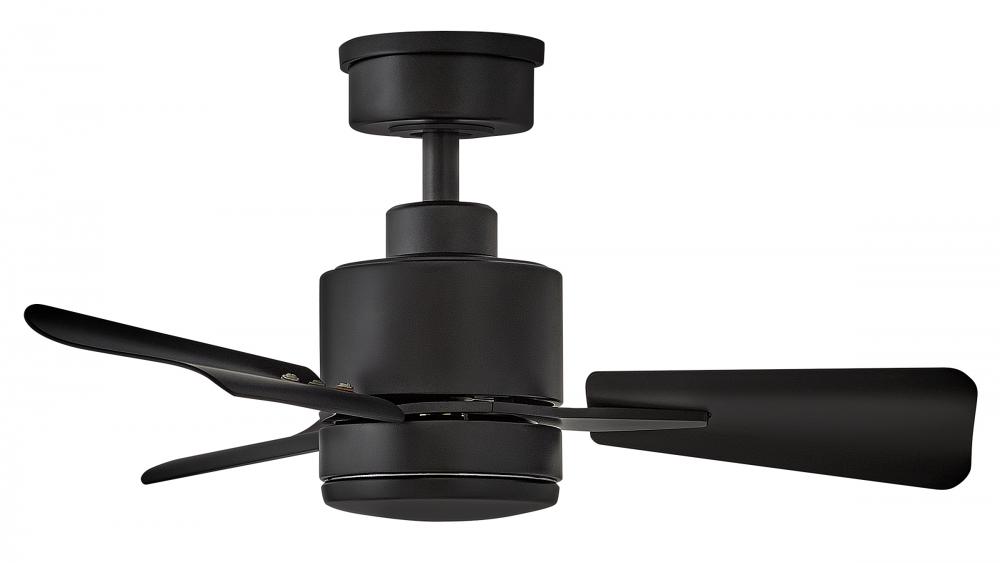

Atom 30" LED Fan (9X127)
Part of the Regency Series, Atom's compact modern profile complements functionality with classic finishes to perfectly accentuate smaller spaces. Its damp-rated design is suitable for both interior and covered outdoor areas. Dimmable Integrated LEDs emit warm, even light, creating a comfortable atmosphere. Operated by the HIRO control, the 3-speed AC motor can be WiFi enabled with the purchase of an additional control accessory. Atom mounts directly to its canopy or with the included downrod for dual mount capability. This will result in an overall fan height of 10" and a ceiling-to-blade height of 5 3/4�.
Downloads
Product Specification
Item #
9X127

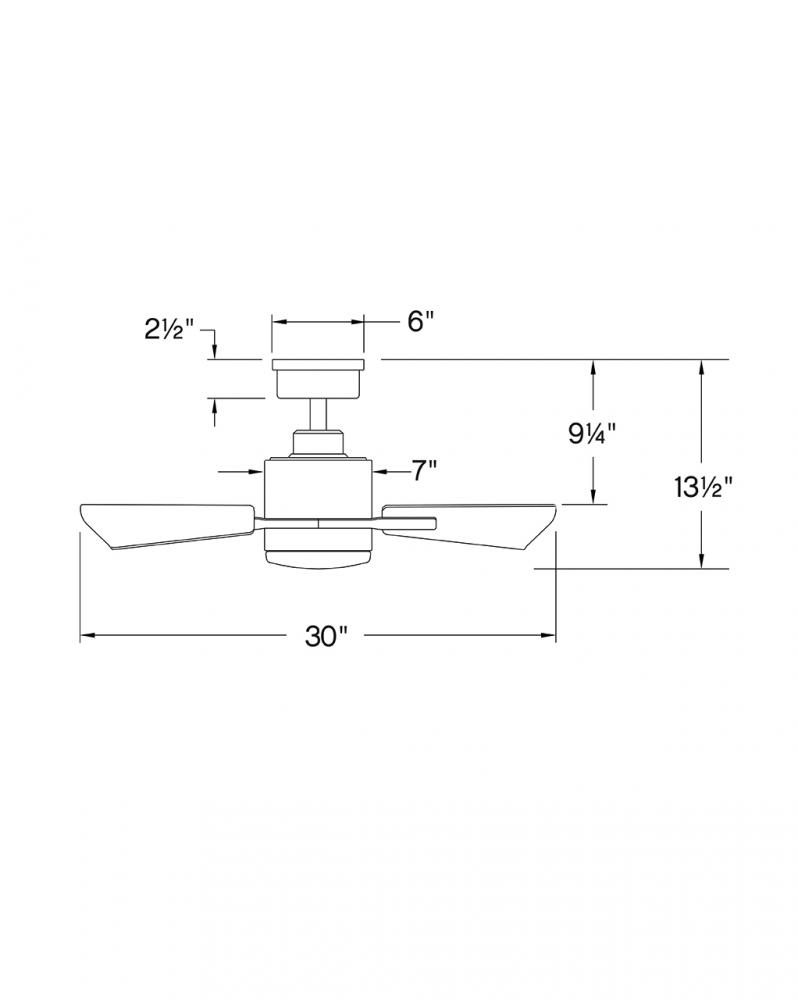

Dimensions
Height: 13.25"
Width: 30.00"
Length: 30.00"
Additional product details
Internal #
9X127
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Style
Traditional
Option
Title 24 , Damp Rated
Category
Fan
Finish
Matte Black
Style
Traditional
Family
Atom
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
2845
Amperage
0.46
Blade Finish
Matte Black
Blade Pitch
13
Blade Span
30
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia. x 2.25 D
Introduction Date
01/01/2024
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
153 x 12
Motor Type
AC
Ship Carton Height
9.53
Ship Carton Length
17.44
Ship Carton Width
16.38
Ship Weight
15.26
Vendor Ship Method
Parcel
Weight
13.23
Airflow Avg
2114
AMPS Avg
0.34
Avg Energy Use
36
Blade Material
Composite
Blade Options Available
No
Blade To Ceiling Height
10
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 3 Speed Manual Reversing
Country of Origin
China
DM Airflow Avg
1690
DM Airflow High
2314
DM AMPS Avg
0.32
DM AMPS High
0.43
DM Avg Energy Use
30
DM Efficiency Avg
56
DM Efficiency High
49.2
DM Energy Cost Avg
9
DM Energy Cost High
13.18
DM Energy Use High
47
DM RPMS Avg
100
DM RPMS High
223
Dual Mount
Yes
Efficiency Avg
59
Efficiency High
52
Energy Cost Avg
10
Energy Cost High
15.36
Energy Use High
54.8
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Damp Rated
Max Wattage
16 W
Motor Fan Speed
3
Number of Blades
3
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
174
RPMS High
234
Safety Rating
UL Approved, C-US Approved
Single Power Switch
No
Slope
20
Sloped Ceiling Adaptable
Yes
Stand By Power
0.29
Title 24
Yes
WIFI Control Included
Yes
WIFI Control Optional
No


Other Details:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Classic, elegant lines and timeless details enhance a traditional space
  • Fan Control included, HIRO Control - 3 Speed Reversing

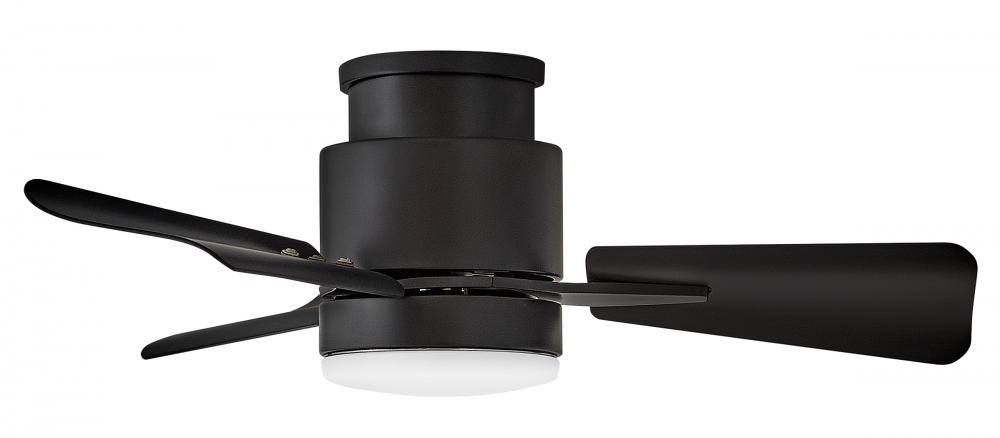

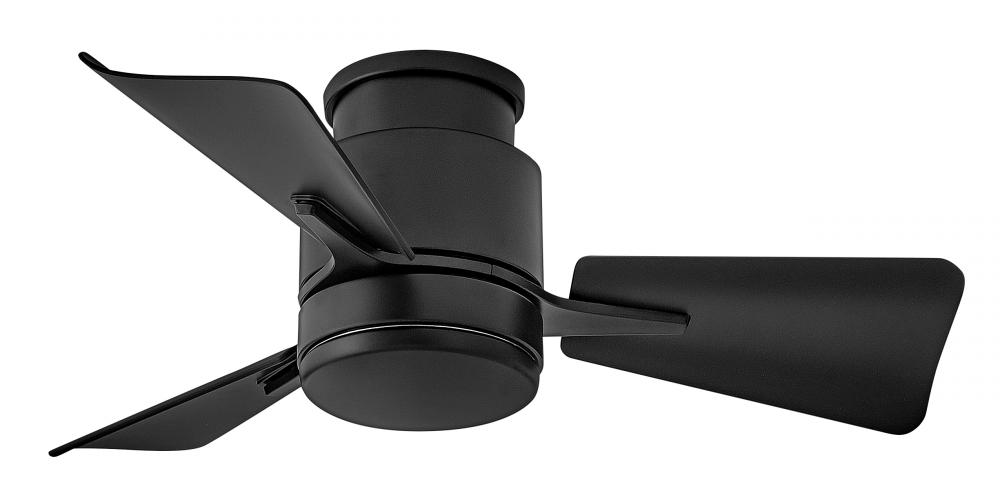

  • Fan mounts directly to canopy or with an included downrod for dual mount capability
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Motor carries a lifetime warranty
  • Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
  • The Regency Series features a range of traditional ceiling fans designed to enhance a wide variety of spaces with ease.

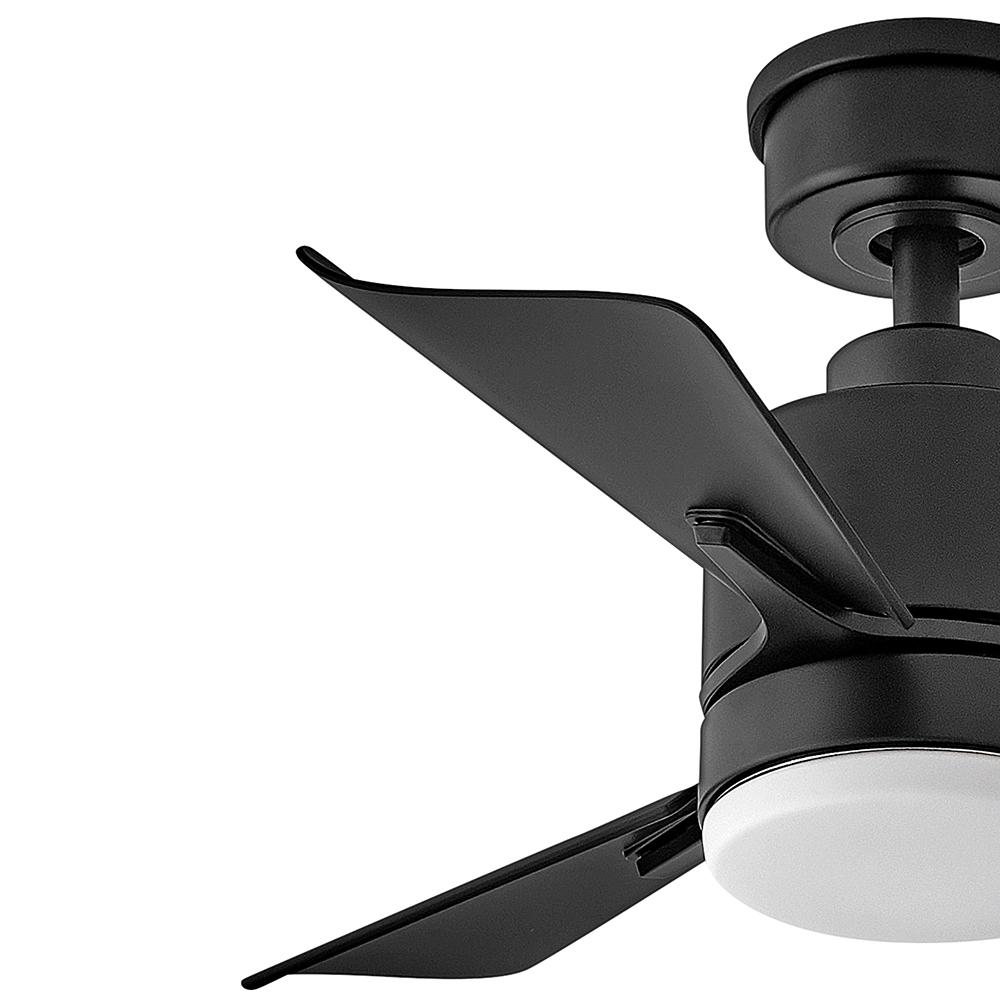

  • This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.

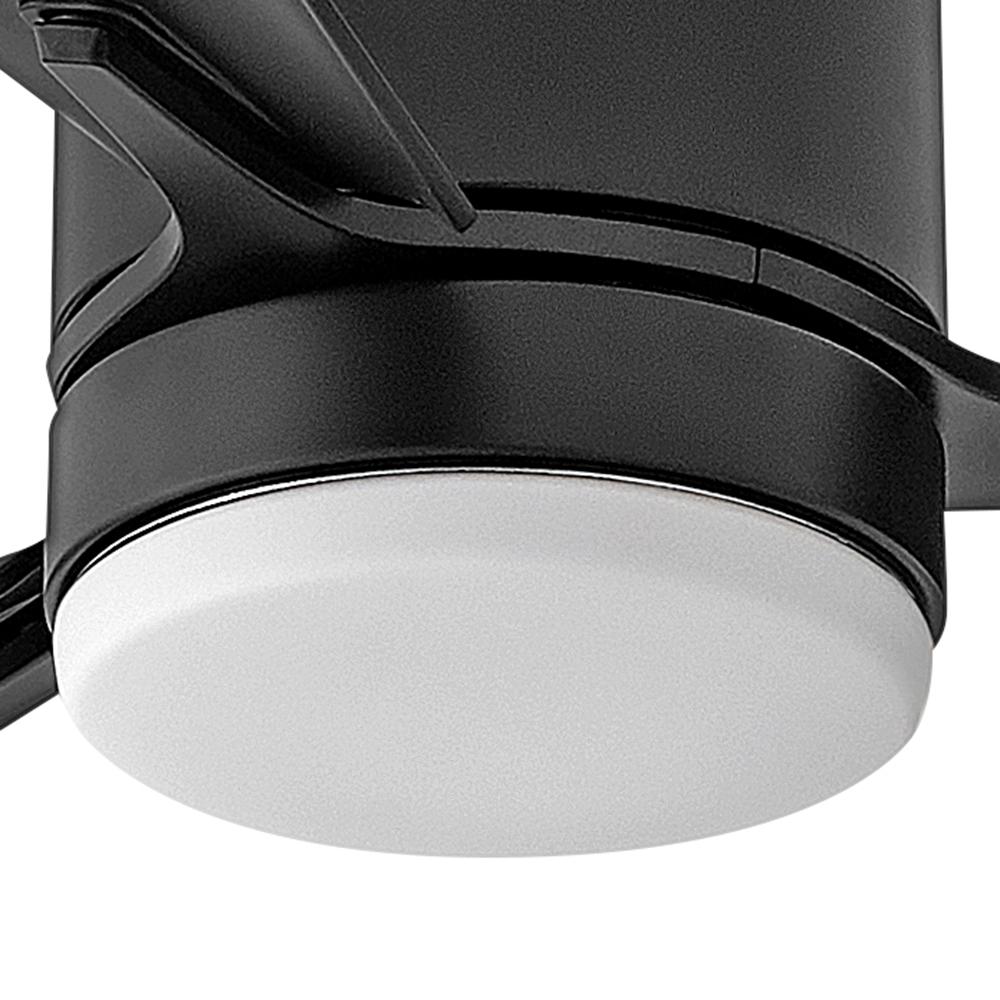

  • This item includes a light kit cover
  • This item may be hung on a sloped ceiling
  • WiFi compatible with included fan control
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
332
22
/ / 1
($332.22 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 131 items available.
  • More Items available 01/20/2025.
