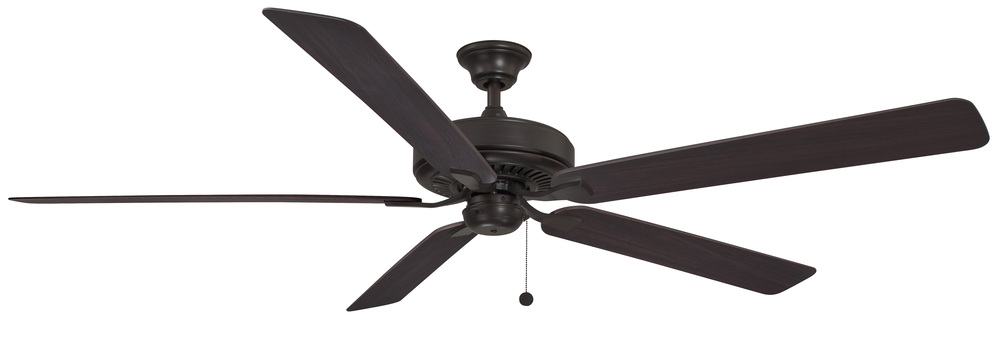

Edgewood 72 - 72 Inch - DZ
Image may not reflect selected features
/vendors/90/large/FP9072DZW_1.jpg
additional image
Edgewood 72 - 72 Inch - DZ (K5WU)
The Edgewood by Fanimation is an aesthetically pleasing ceiling fan that has it all. The Edgewood boasts the unique capacity to operate in both dry and wet locations. This versatile ceiling fan compliments any interior or exterior design with finish options ranging from black with black blades, brushed nickel with dark walnut blades, dark bronze with dark walnut blades and matte white with matte white blades. The Edgewood includes a 4.5 inch stainless steel downrod and is ceiling slope compatible. The Edgewood can be purchased with an optional close-to-ceiling kit for a more snug fit. *Wet Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
4863 Cubic Feet per Minute
Electricity Rate
93 Watts (excluded lights)
Airflow Efficiency
52 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
K5WU
Dimensions
Height: 10.54"
Width: 72.00"
Length: 72.00"
Additional product details
Internal #
K5WU
Category
Exterior , Fans
Subcategory
Exterior Fans , Outdoor Fans
Finish
Bronze
Style
Traditional
Option
Wet Rated
Voltage
10-99
Number of Blades
5 Blades
Subfinish
Dark Bronze
Location Rating
Wet Rated
Category
Fan-Uni
Finish
Dark Bronze
Option
Wet
Family
Edgewood 72
Voltage
120 V
Additional Info
3 speed AC motor with reverse switch , 4863 CFM on High , Limited Lifetime Warranty , Pull Chain Operated , Set of (5) wet rated blades in multiple finish options included and light kit adaptable (sold separa , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
4863
Air Flow Efficiency
52
Amperage
0.78
Blade Finish
Dark Walnut
Blade Pitch
13.5
Canopy
5.97 Dia x 2.36 H
Diameter
12.6
Down Rod Included
4.5
Electricity Used
93
Harmonized Codes
8414.51.3000
Length
72
Light Kit Included
No
Material
Composite
Max Height
14.17
Motor Fan Speed
3
Motor RPM
97
Motor Size
212 X 35
Motor Type
AC
Ship Carton Height
11.3
Ship Carton Length
31.81
Ship Carton Width
15.2
Ship Weight
41.01
Sold By
Each
Warranty
Limited Lifetime
Weight
36.84
Airflow Efficiency Low
127
Airflow Efficiency Medium
84
Avg Airflow Efficiency
64
Avg CFM Energy
3720
Avg Energy Use Watts
58
Avg Estimated Yearly Energy Cost
16
Avg Estimated Yearly Energy Cost on HIGH
26
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
72
Canopy Diameter
5.97 Dia
Canopy Height
2.36 H
Cap Included
No
Carton Cubic Feet
3.16
Cartons Per Unit
1
Case Height
11.3
Case Length
31.81
Case Quantity
1
Case Weight Pounds
41.01
Case Width
15.2
CEC Uploaded
Yes
Ceiling To Blade Edge
8.88/12.51
Ceiling To Bottom
10.54/14.17
Ceiling to Bottom with LK
18.7
CFM Low
2424
CFM Medium
3620
Compatible Accessories
DR1-CPDZ, DR1SS-12DZW, DR1SS-18DZW, DR1SS-24DZW, DR1SS-36DZW, DR1SS-48DZW, DR1SS-60DZW, DR1SS-72DZW, SCK1-52DZW
Compatible Controls
BTCR9, BTR9, CR500, CRL4WH, WFR50
Compatible Light Kits
F5DZ, F6DZ, F8DZ, G1FW, G1MS, G1TST, G2OP, G2TST, G3CL, G3OP, G3OPS, G4CL, G4OPS, G4TST, G5OP, G5TST, G6CL, G6OP, G6TST, LK179DZW
Compatible Wall Controls
CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin
China
Current Draw High
0.78
Current Draw Low
0.35
Current Draw Medium
0.53
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star
No
Housing Diameter
12.6
Included Control Type
Pull Chain
Leadwire
80
Max Ceiling Slope
17
Max Watt
93
Maximum Slope Degree
17
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
5
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM High (VI)
97
RPM Low (II)
40
RPM Medium (IV)
63
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
19
Watts Medium
43
Wet Rated
Yes


Other Details:
  • 3 Speed Ac Motor With Reverse Switch
  • 4863 Cfm On High
  • Limited Lifetime Warranty
  • Pull Chain Operated
  • Set Of (5) Wet Rated Blades In Multiple Finish Options Included And Light Kit Adaptable (sold Separately)
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
