GlideAire - 52 Inch - BN with BN Blades
Image may not reflect selected features

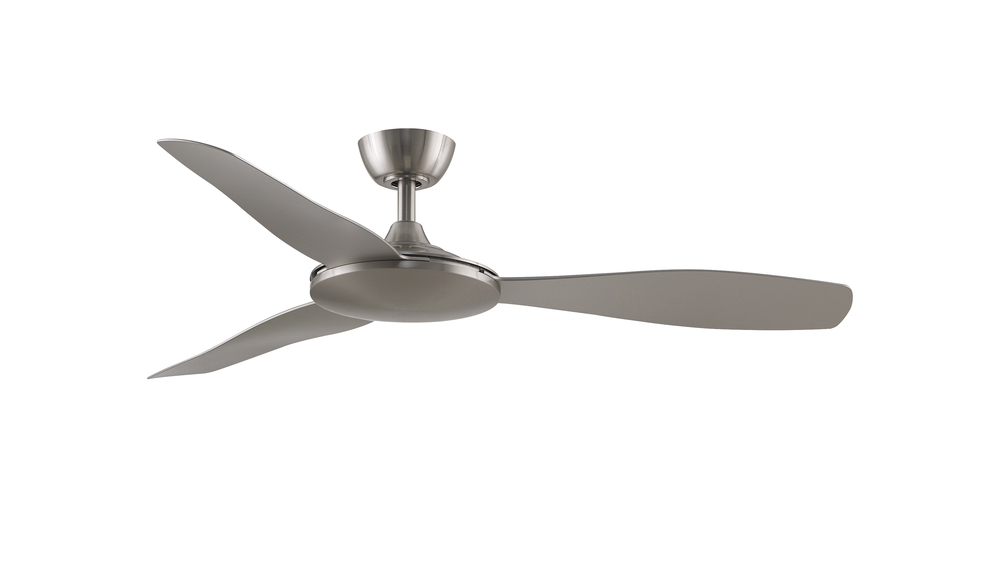

GlideAire - 52 Inch - BN with BN Blades (K3XV)
GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
5538 Cubic Feet per Minute
Electricity Rate
26 Watts (excluded lights)
Airflow Efficiency
215 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
K3XV
Dimensions
Height: 9.98"
Width: 52.00"
Length: 52.00"
Additional product details
Internal #
K3XV
Category
Fans
Subcategory
Ceiling Fans
Finish
Nickel
Style
Traditional
Option
Energy Star , Damp Rated
Voltage
10-99
Number of Blades
3 Blades
Location Rating
Damp Rated
Category
Fan-Uni
Finish
Brushed Nickel
Option
Damp
Family
Glideaire
Voltage
120 V
Additional Info
5876 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air , ENERGY STAR Most Efficient 2020 , Set of (3) 52 inch Damp Rated Black or Brushed Nickel blades included , TR205 handheld remote with CR2032 batteries included
Air Flow CFM
5538
Air Flow Efficiency
215
Amperage
0.36
Blade Finish
Brushed Nickel
Blade Pitch
15
Canopy
5.71 Dia x 2.23 H
Diameter
11.02
Down Rod Included
4.5
Electricity Used
26
Harmonized Codes
8414.51.3000
Length
52
Light Kit Included
No
Material
Composite
Motor Fan Speed
16
Motor RPM
173
Motor Size
158 X 15
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
8.58
Ship Carton Length
24.61
Ship Carton Width
12.8
Ship Weight
15.9
Sold By
Each
Warranty
Limited Lifetime
Weight
13.3
Airflow Efficiency Low
192
Airflow Efficiency Medium
456
Avg Airflow Efficiency
218
Avg CFM Energy
3746
Avg Energy Use Watts
17
Avg Estimated Yearly Energy Cost
5
Avg Estimated Yearly Energy Cost on HIGH
7
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Canopy Diameter
5.71 Dia
Canopy Height
2.23 H
Cap Included
No
Carton Cubic Feet
1.56
Cartons Per Unit
1
Case Height
8.58
Case Length
24.61
Case Quantity
1
Case Weight Pounds
15.9
Case Width
12.8
CEC Uploaded
Yes
Ceiling To Blade Edge
9.15
Ceiling To Bottom
9.98
CFM Low
538
CFM Medium
3371
Compatible Accessories
CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.36
Current Draw Low
0.05
Current Draw Medium
0.11
Damp Rated
Yes
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
11.02
Included Control
TR205D
Included Control Type
Handheld
Leadwire
54
Max Ceiling Slope
19
Max Watt
26
Maximum Slope Degree
19
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
173
RPM Low (II)
28
RPM Medium (IV)
105
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
3
Watts Medium
7


Other Details:
  • 5876 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
  • Energy Star Most Efficient 2020
  • Set Of (3) 52 Inch Damp Rated Black Or Brushed Nickel Blades Included
  • Tr205 Handheld Remote With Cr2032 Batteries Included
