Canopy
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Switch/Control Included
Includes Wall Control for easy speed and lighting adjustment right from your wall switch
Warranty
Limited Lifetime Motor Warranty
6 Square (ID)
Casual Transitional
Audible Feedback Receiver
No
Blade Pitch Feature
22 degree blade pitch optimized to ensure ideal air movement and peak performance

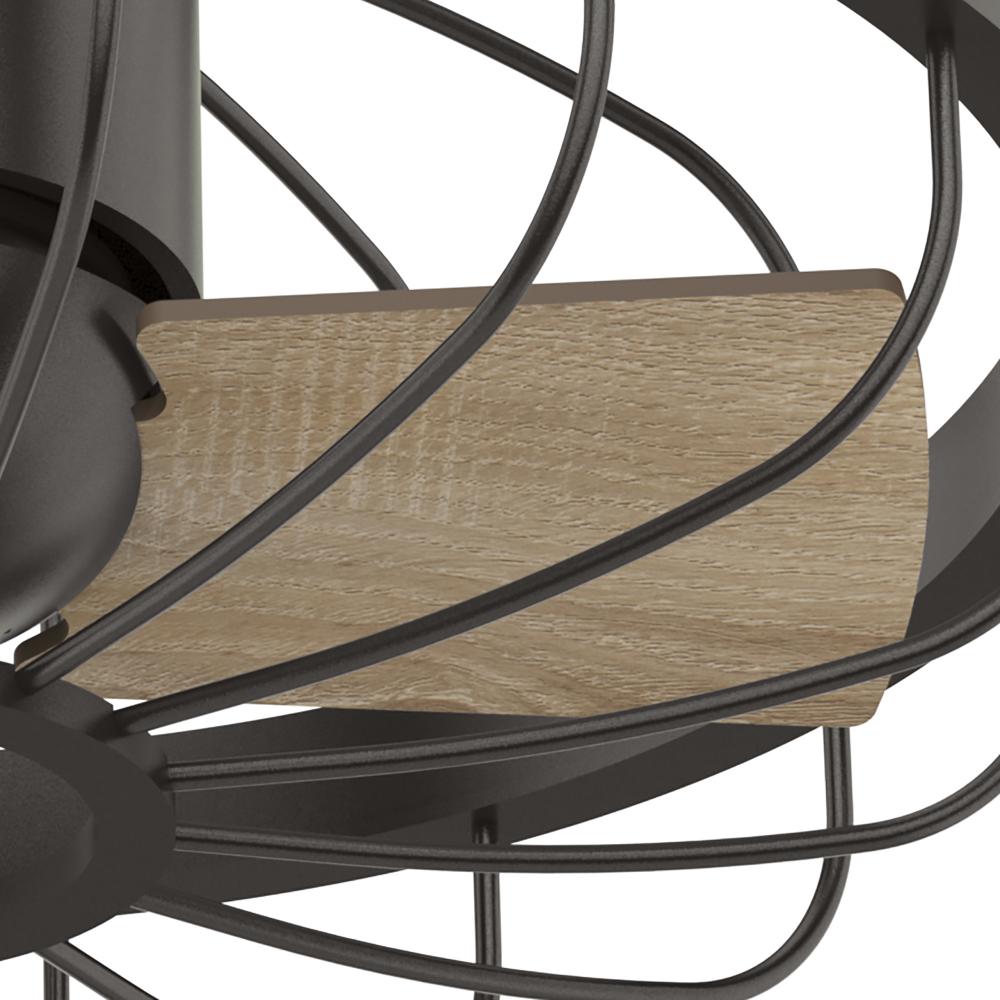

Blade Side 1 Finish
Latte Oak
Blade Side 2 Finish
Latte Oak
Blade Side Feature
3 Latte Oak blades included
Can be used without Lightkits
No
Canopy Mounting Feature
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Canopy Type Description
Standard Platform
Control Type Included
Wall Control

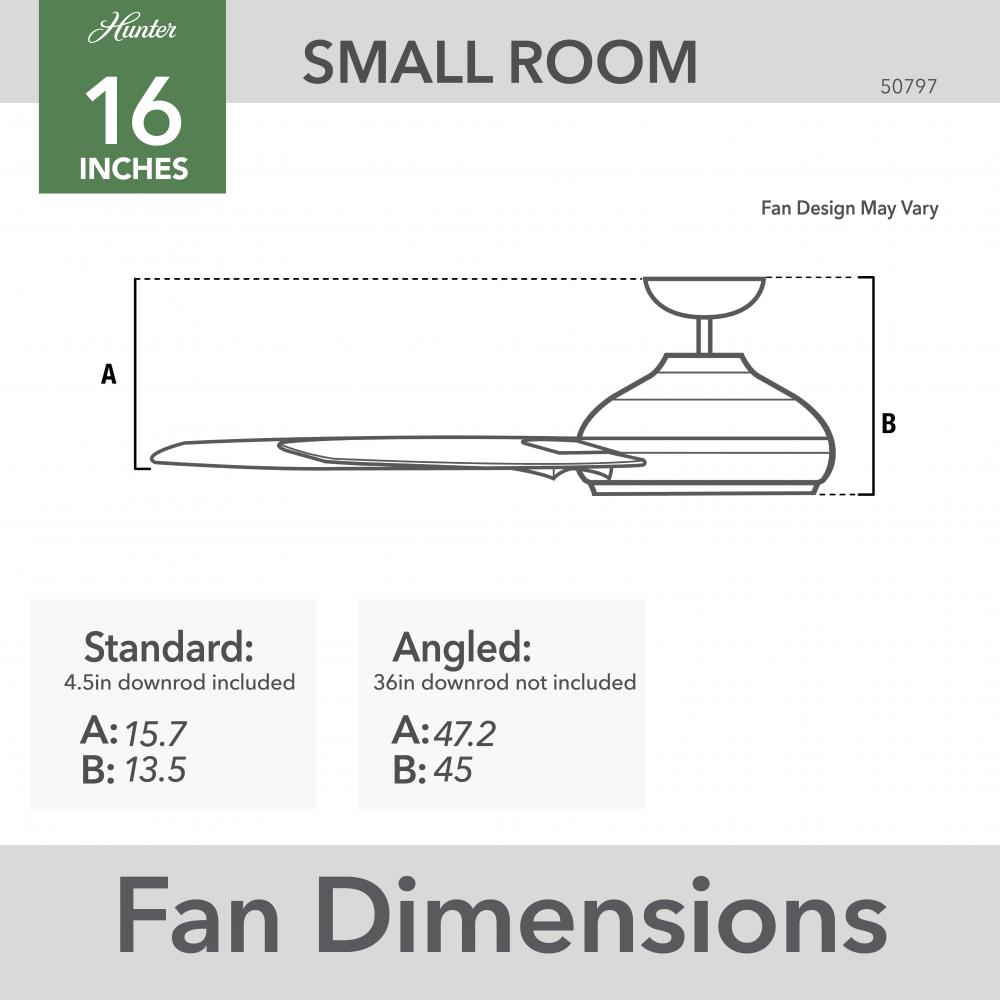

Dim A - Angled - Ceiling to Bottom of Fan
47.2
Dim A - Standard - Ceiling to Bottom of Fan
15.7
Dim A Angled Ceiling To Bottom Of Fan
47.2
Dim A Flush Ceiling To Bottom Of Fan
15.7
Dim A Standard Ceiling To Bottom Of Fan
15.7
Dim B - Angled - Ceiling to Bottom of Fan Blade
45
Dim B - Flush - Ceiling to Bottom of Fan Blade
13.5
Dim B - Standard - Ceiling to Bottom of Fan Blade
13.5
Dim B Angled Ceiling To Bottom Of Fan Blade
45
Dim B Standard Ceiling To Bottom Of Fan Blade
13.5
Dim C - Standard - Ceiling to Bottom of Canopy
2.75
Dim C Standard Ceiling To Bottom Of Canopy
2.75
Dim D - Standard - Width of Fan Body
6.1
Dim D Standard Width Of Fan Body
6.1
Dim E - Standard - Canopy Width
6.49
Dim E Standard Canopy Width
6.49
Dim F - Angled - Ceiling to Bottom of Light
47.2
Dim F - Flush - Ceiling to Bottom of Light
15.7
Dim F - Standard - Ceiling to Bottom of Light
15.7
Dim F Angled Ceiling To Bottom Of Light
47.2
Dim F Standard Ceiling To Bottom Of Light
15.7
Dim G - Standard - Height of Motor Housing
4.7
Dim G Standard Height Of Motor Housing
4.7
Downrod Feature
Includes 4.5'' downrod to ensure proper distance from the ceiling and optimize air movement
Estimated Yearly Energy Cost
3

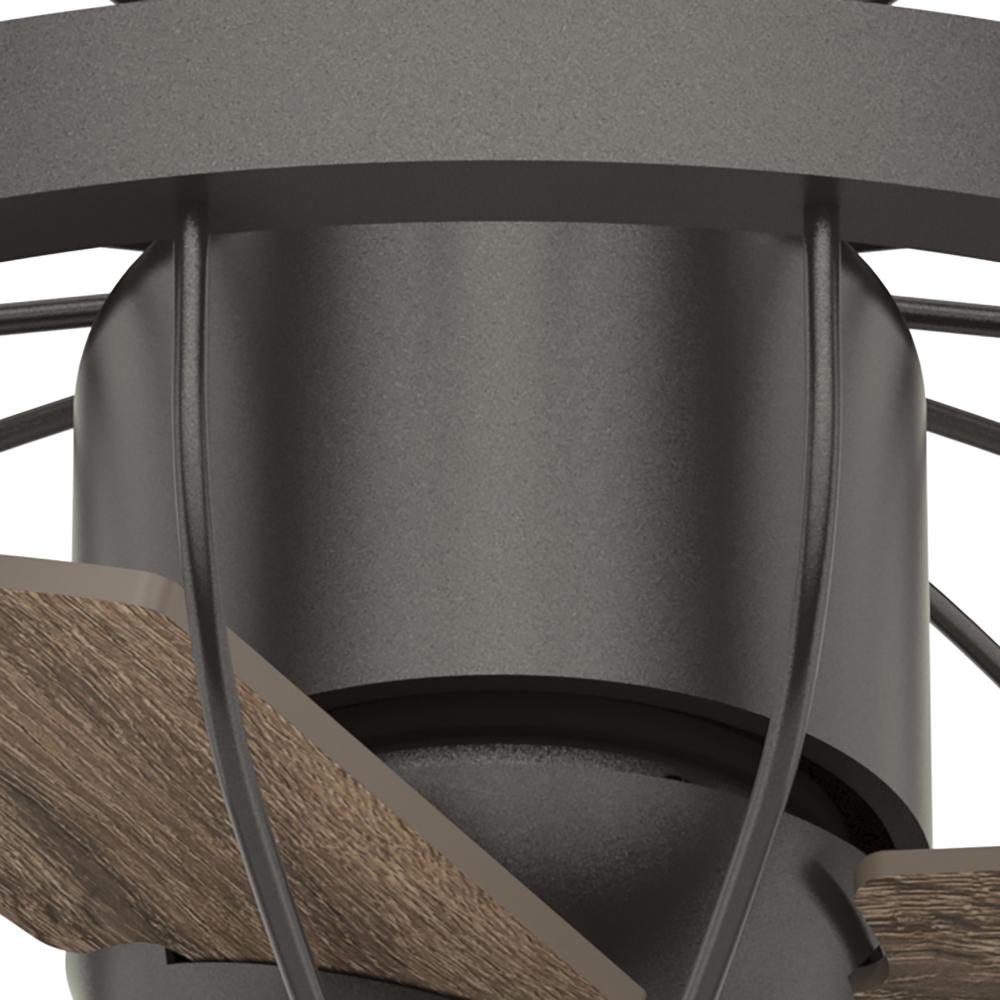

Housing Feature
Noble Bronze finish
Housing Finish
Noble Bronze
Housing Finish Family Name
Bronze/Brown
Included Control Feature
Includes Wall Control for easy speed and lighting adjustment right from your wall switch
LED Indicator on Transmitter
No
Light Spec
No Light Kit Included
Listing Agency
ETL Listed
Location Feature
Rated for indoor spaces only
Motor Type Feature
Reversible, 6-speed DC
Mounting Options
Two position mounting system allows for standard or angled mounting
Mounting Options Friendly Value
Two position mounting system allows for standard or angled mounting
Reversible Motor
Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
Stainless Steel Hardware
No
Transmitter Type
Remote Wall Control
Type of Batteries
Lithium
Uplight Downlight Separate Control
No
Warranty Feature
Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
Energy Information at High Speed
