Canopy
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Lumens / Light Output
600
Motor RPM
High:145/Med:90/Low:50
Special Features
Can Be Used With Or Without Light Kit
Warranty
Limited Lifetime Motor Warranty
6 Square (ID)
Formal Traditional
Blade Pitch Feature
13 degree blade pitch optimized to ensure ideal air movement and peak performance
Blade Side 1 Finish
Walnut
Blade Side 2 Finish
Medium Oak
Blade Side Feature

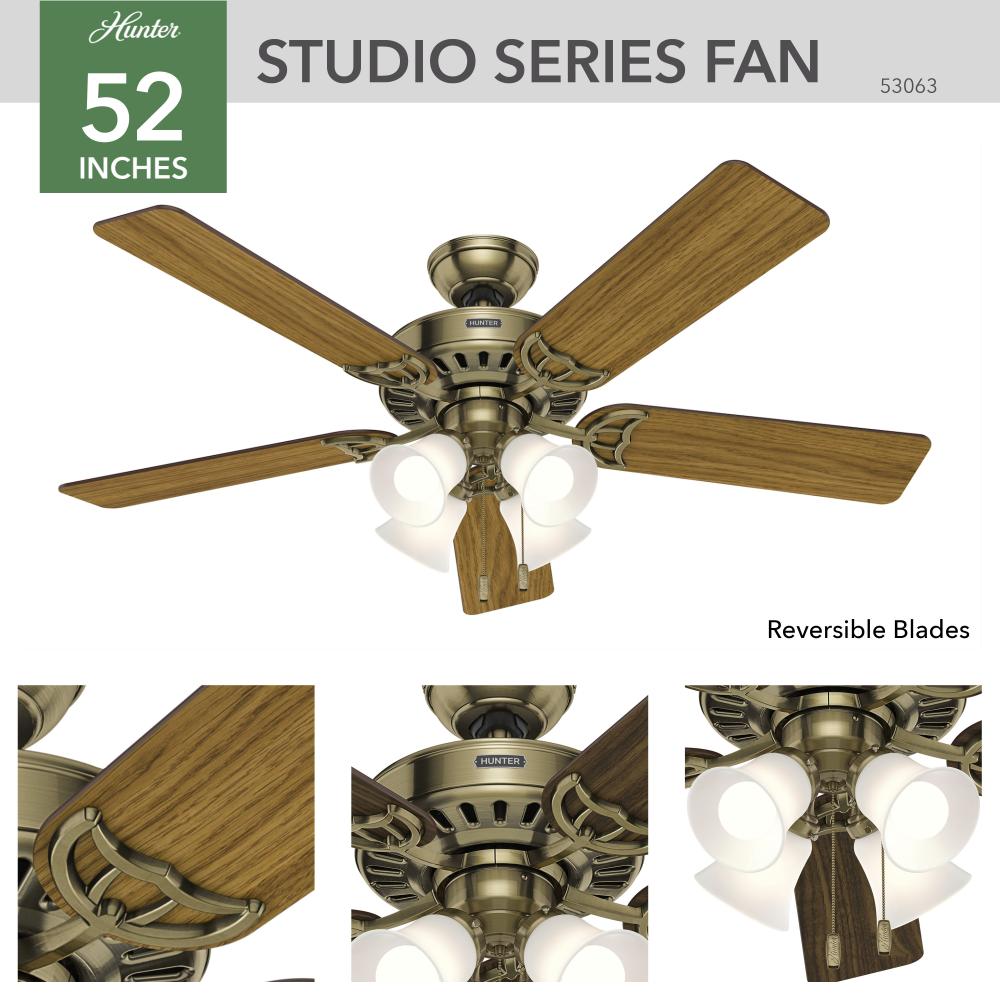

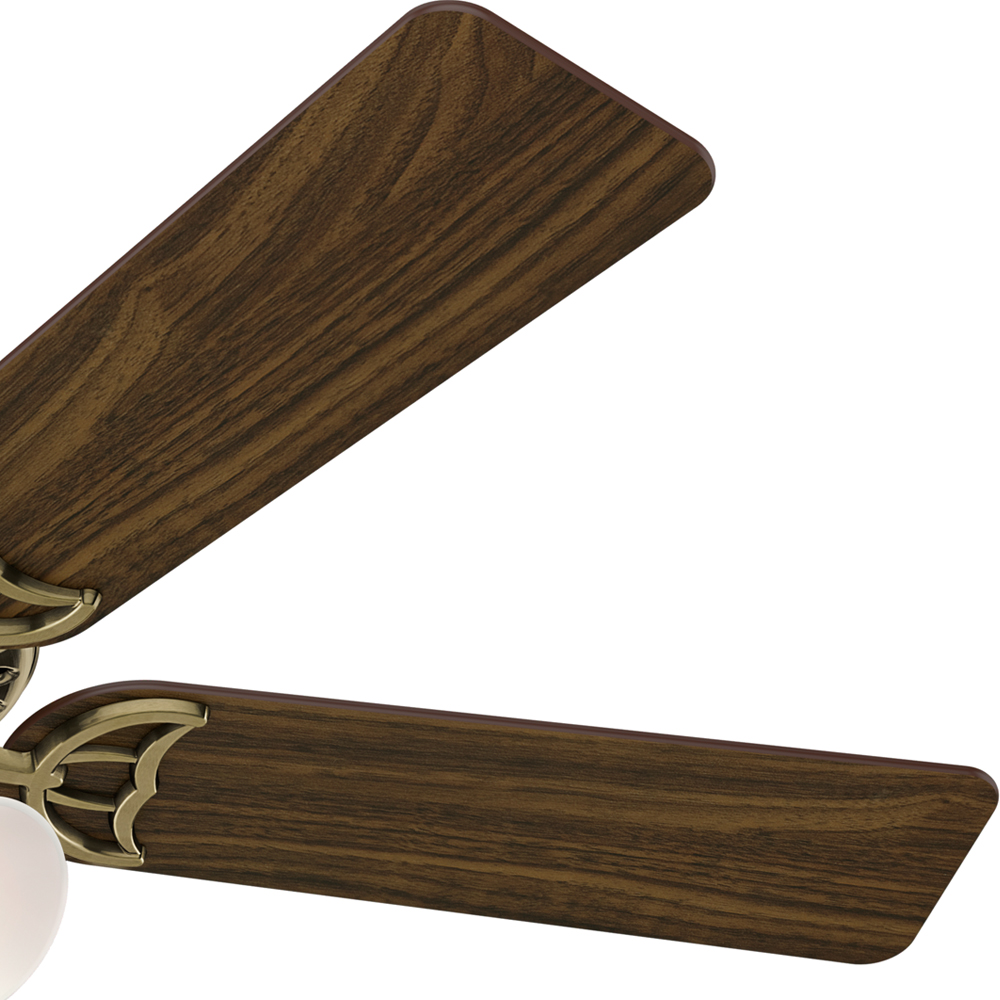

5 Walnut / Medium Oak reversible blades included
Bulb Count & Type Feature
Includes 4 6.5W energy-efficient, LED bulbs to give you control of the ambiance in your space
Can be used without Lightkits
Yes
Canopy Mounting Feature
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Canopy Type Description
Standard Platform
Dim A - Angled - Ceiling to Bottom of Fan
45.27
Dim A - Standard - Ceiling to Bottom of Fan
12.27
Dim A Angled Ceiling To Bottom Of Fan
45.27
Dim A Flush Ceiling To Bottom Of Fan
11.27
Dim A Standard Ceiling To Bottom Of Fan
12.27
Dim B - Angled - Ceiling to Bottom of Fan Blade
43.96
Dim B - Flush - Ceiling to Bottom of Fan Blade
9.96
Dim B - Standard - Ceiling to Bottom of Fan Blade
10.96
Dim B Angled Ceiling To Bottom Of Fan Blade
43.96
Dim B Flush Ceiling To Bottom Of Fan Blade
9.96
Dim B Standard Ceiling To Bottom Of Fan Blade
10.96
Dim C - Standard - Ceiling to Bottom of Canopy
2.75
Dim C Standard Ceiling To Bottom Of Canopy
2.75
Dim D - Standard - Width of Fan Body
11.69
Dim D Standard Width Of Fan Body
11.69
Dim E - Standard - Canopy Width
6.5
Dim E Standard Canopy Width
6.5
Dim F - Angled - Ceiling to Bottom of Light
51
Dim F - Flush - Ceiling to Bottom of Light
17
Dim F - Standard - Ceiling to Bottom of Light
18
Dim F Angled Ceiling To Bottom Of Light
51
Dim F Flush Ceiling to Bottom of Light
17
Dim F Standard Ceiling To Bottom Of Light
18
Dim G - Standard - Height of Motor Housing
4.51
Dim G Standard Height Of Motor Housing
4.51
Downrod Feature
Includes 3'' downrod to ensure proper distance from the ceiling and optimize air movement
Estimated Yearly Energy Cost
11
Glass Finish
Clear Frosted
Glass Finish Feature
Includes 4 Light light kit with Clear Frosted glass
Housing Feature
Antique Brass finish
Housing Finish
Antique Brass
Housing Finish Family Name
Brass
LED Feature
LED light kit for lower energy consumption, brighter light output and a longer lifespan than traditional bulbs
LED Indicator on Transmitter
No
Lifetime Expectation hours
15,000 Hrs
Light Kit Warranty
1 Year
Light Spec
A15 LED Bulb | 600lm DOE Spec | Long Star | 6.5 W | K7795-01
Listing Agency
ETL Listed
Location Feature
Rated for indoor spaces only
Motor Type Feature
Reversible, 3-speed WhisperWind® motor delivers ultra-powerful air movement with whisper-quiet performance so you get the cooling power you want without the noise you don’t™
Mounting Options
Two position mounting system allows for standard or angled mounting
Mounting Options Friendly Value
Two position mounting system allows for standard or angled mounting
No-Light Cap Included
Yes
Product Portfolio
Living Room
Pull Chain Feature
Includes pull chains for quick and easy on/off and speed adjustments
Reversible Motor
Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
Stainless Steel Hardware
No
Uplight Downlight Separate Control
No
Warranty Feature
Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
Energy Information at High Speed
