Canopy
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Warranty
Limited Lifetime Motor Warranty
6 Square (ID)
Casual Transitional
Audible Feedback Receiver
No
Blade Pitch Feature
13 degree blade pitch optimized to ensure ideal air movement and peak performance
Blade Side 1 Finish
White
Blade Side 2 Finish
White

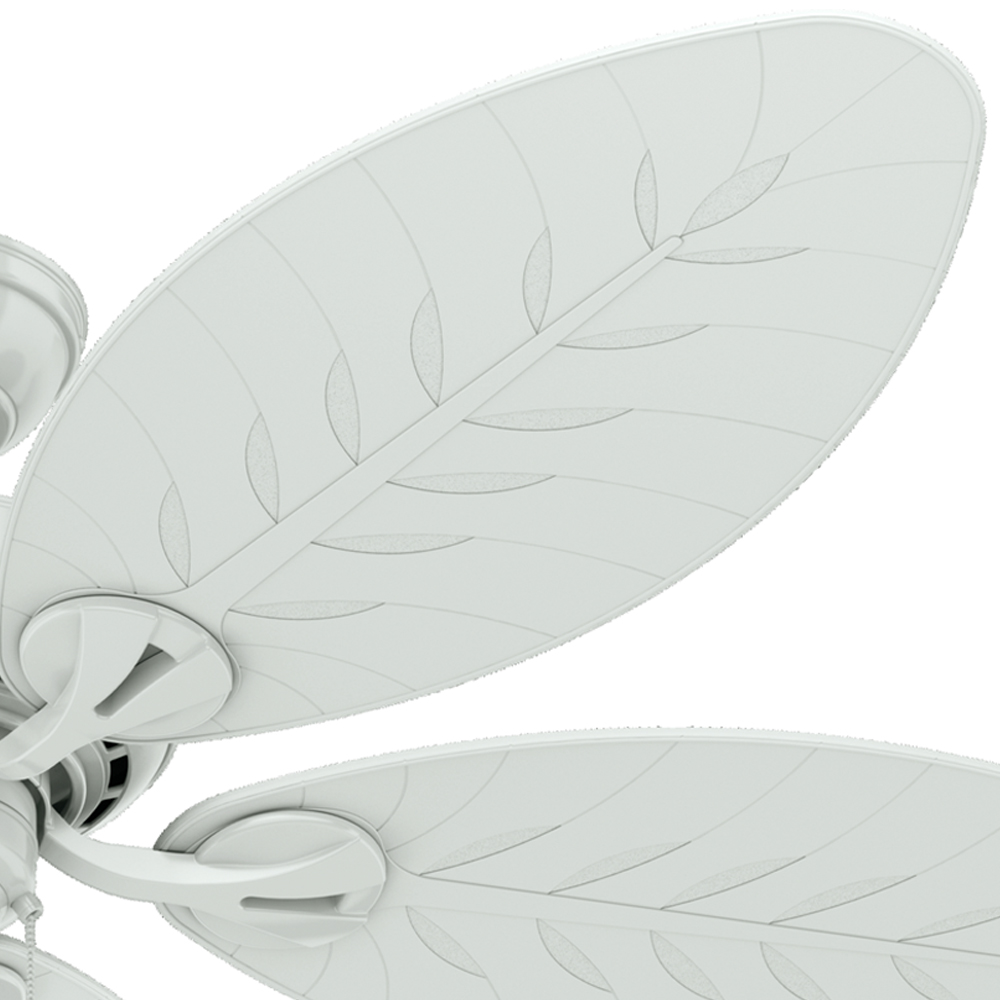

Blade Side Feature
5 White blades included
Can be used without Lightkits
Yes
Canopy Mounting Feature
Installer's Choice® three-position mounting system allows for standard, low, or angled mounting
Canopy Type Description
Standard Platform

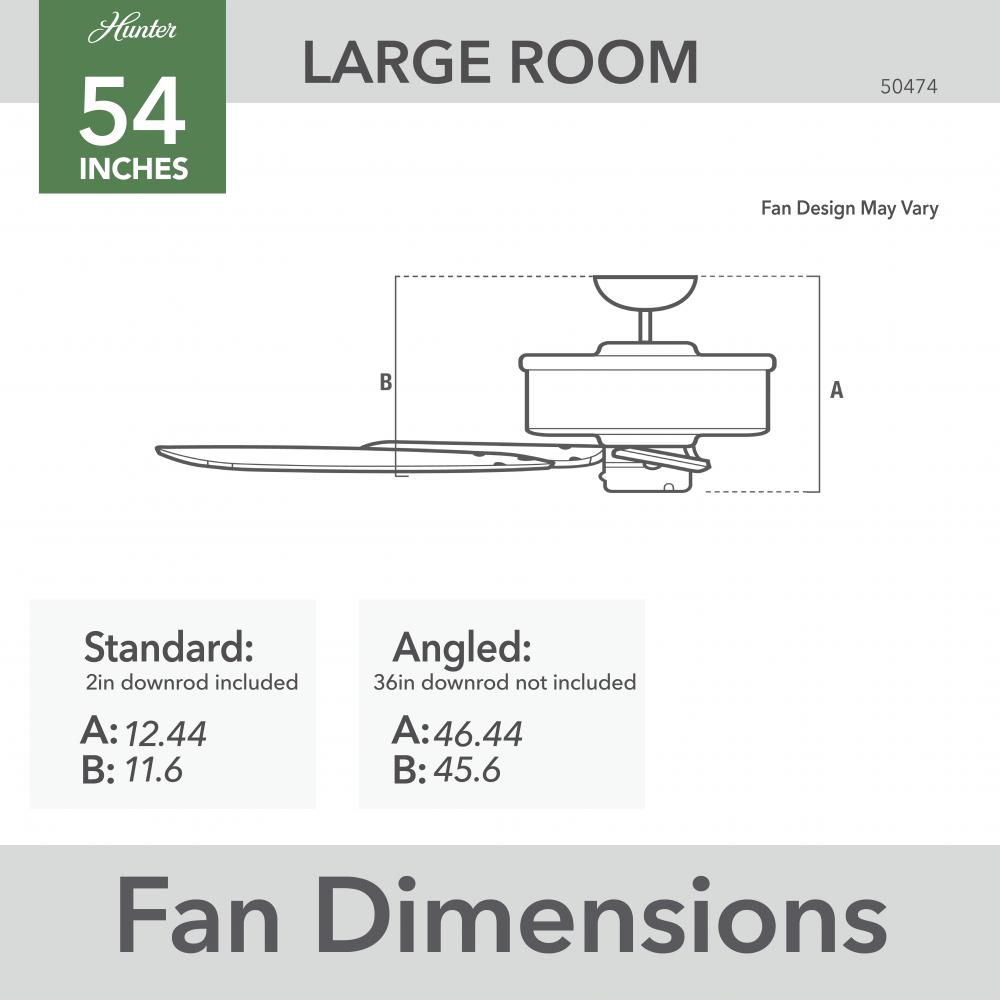

Dim A - Angled - Ceiling to Bottom of Fan
46.44
Dim A - Standard - Ceiling to Bottom of Fan
12.44
Dim A Angled Ceiling To Bottom Of Fan
46.44
Dim A Flush Ceiling To Bottom Of Fan
10.44
Dim A Standard Ceiling To Bottom Of Fan
12.44
Dim B - Angled - Ceiling to Bottom of Fan Blade
45.6
Dim B - Flush - Ceiling to Bottom of Fan Blade
9.6
Dim B - Standard - Ceiling to Bottom of Fan Blade
11.6
Dim B Angled Ceiling To Bottom Of Fan Blade
45.6
Dim B Flush Ceiling To Bottom Of Fan Blade
9.6
Dim B Standard Ceiling To Bottom Of Fan Blade
11.6
Dim C - Standard - Ceiling to Bottom of Canopy
2.75
Dim C Standard Ceiling To Bottom Of Canopy
2.75
Dim D - Standard - Width of Fan Body
9.5
Dim D Standard Width Of Fan Body
9.5
Dim E - Standard - Canopy Width
6.49
Dim E Standard Canopy Width
6.49
Dim G - Standard - Height of Motor Housing
4.7
Dim G Standard Height Of Motor Housing
4.7
Downrod Feature
Includes 2'' downrod to ensure proper distance from the ceiling and optimize air movement
Estimated Yearly Energy Cost
12
Housing Feature
White finish
Housing Finish Family Name
White
LED Indicator on Transmitter
No
Light Spec
No Light Kit Included
Listing Agency
ETL Listed
Location Feature
Damp rated for use as an indoor or outdoor ceiling fan in spaces exposed to moisture and humidity such as porches, patios, sunrooms, and bathrooms
Motor Type Feature
Reversible, 3-speed WhisperWind® motor delivers ultra-powerful air movement with whisper-quiet performance so you get the cooling power you want without the noise you don’t™
Mounting Options
Two position mounting system allows for standard or angled mounting
Mounting Options Friendly Value
Two position mounting system allows for standard or angled mounting
No Light Cap Feature
Optional light cap allows you to use this versatile fan without the light kit to achieve the perfect style
No Light Cap Included
Yes
No-Light Cap Included
Yes
Product Portfolio
Outdoor
Pull Chain Feature
Includes pull chains for quick and easy on/off and speed adjustments
Receiver Location
Not Included
Reversible Motor
Reversible motor allows you to change the direction of your fan from downdraft mode during the summer which helps cool the room to updraft mode during the winter to help circulate trapped warm air near the ceiling.
Stainless Steel Hardware
No
Uplight Downlight Separate Control
No
Warranty Feature
Limited Lifetime Motor Warranty is backed by the only company with over 130 years in the fan business
Energy Information at High Speed
