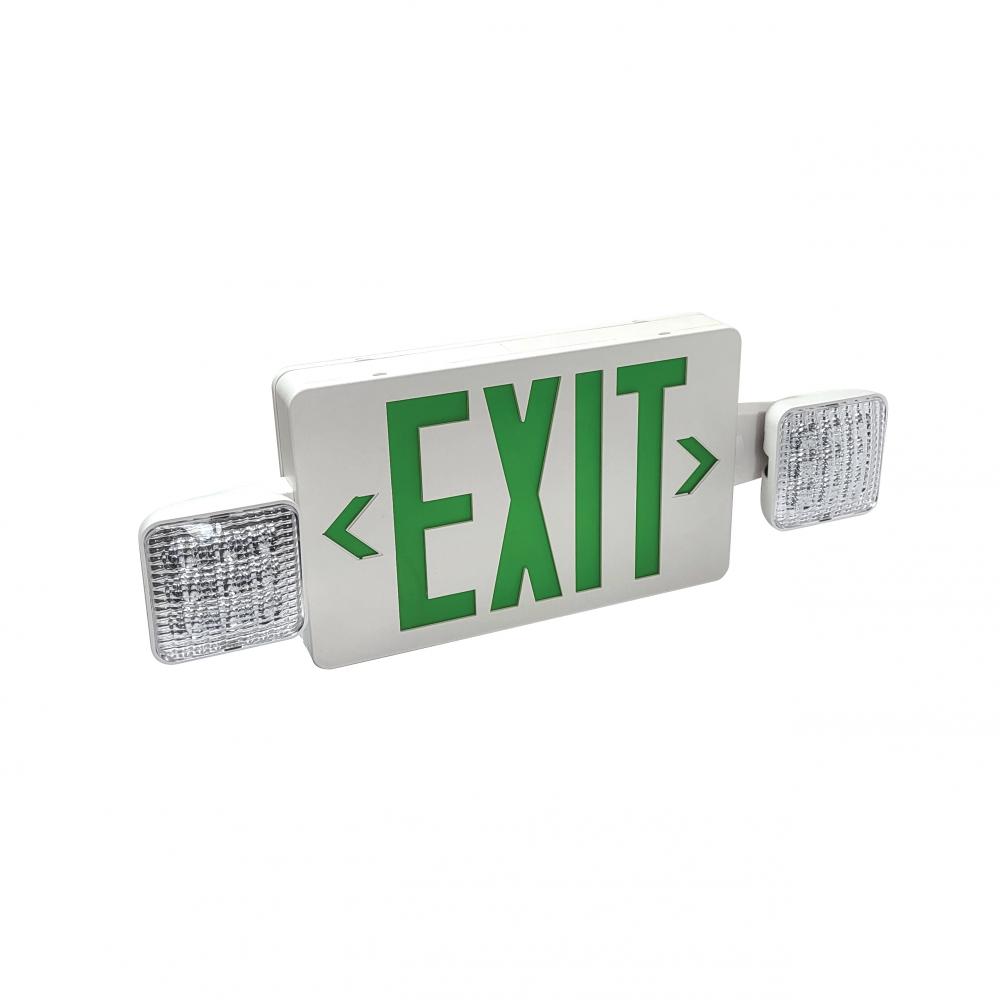

LED Exit and Emergency Combination with Adjustable Heads, Battery Backup, Green Letters / White
Image may not reflect selected features
LED Exit and Emergency Combination with Adjustable Heads, Battery Backup, Green Letters / White (1J70NX)
LED exit sign: battery backup, 6” green letters / white housing, color diffusion, and dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
Input Voltage: 120/277VAV
Wattage: 3.8W
Lumens / Wattage Per Head: (2) 75lm / 1.5W
CCT: 5700K
Finish: White
Battery: 3.6V 900mAh Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit. High temperature rated Ni-cad battery; Low voltage protection; Test switch and battery charging indicator; 24-hours recharge, more than 90 minutes discharge
Face: Single or dual configuration. Optional solid face panel is included. 6” high text with color diffusion. Knockout directional chevrons.
Remote Capability: 3.6V / 0.75W / 75lm per head
Testing: High-charge/ready operation indicator light; Manual test switch and indicator; Self-testing and self-diagnostics; Isolated surge/short circuit protection
Mounting: Wall or side mount. All mounting hardware included.
Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
Downloads
Product Specification
Item #
1J70NX
Dimensions
Height: 7.25"
Width: 4.00"
Additional product details
Internal #
1J70NX
Category
Utility
Subcategory
Exit Signs
Category
Exit / Emergency
Product Line
5010
Est. Shipping Wt.
4
Length
19
Lumens / Light Output
150lm
Ship Carton Height
3.5
Ship Carton Length
16
Ship Carton Width
7.75
Weight
3.25
Battery Quantity
1
Battery Type
Nickel-Cadmium
CCT
5700K
Contains Battery
Y
Country of Origin
CHN
DLC Listed
No
Master Box H
12
Master Box L
17
Master Box Qty
6
Master Box W
16
Master Box Wt.
22
Product Family
EXIT
Safety Listing
UL 924, OSHA, NFPA 101
Wattage
3.8W


Other Details:
  • 3.25
Finish
Additional options that would change other selections
Specific Products
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
125
90
/ / 1
($125.90 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 630 items available.
