LED Under Cabinet Lights, 2700k/3000k/4000k, 106 Degree, Cri90, ETL, 10w, 65w Equivalent, 50000hrs
Image may not reflect selected features
/vendors/758/large/UCL1610WH.jpg
additional image

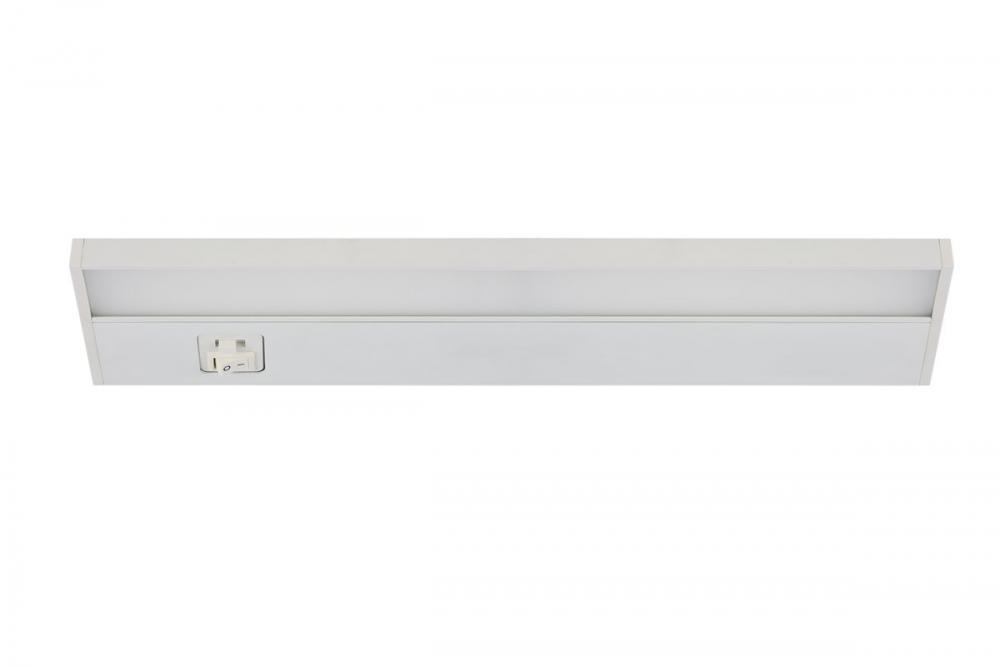

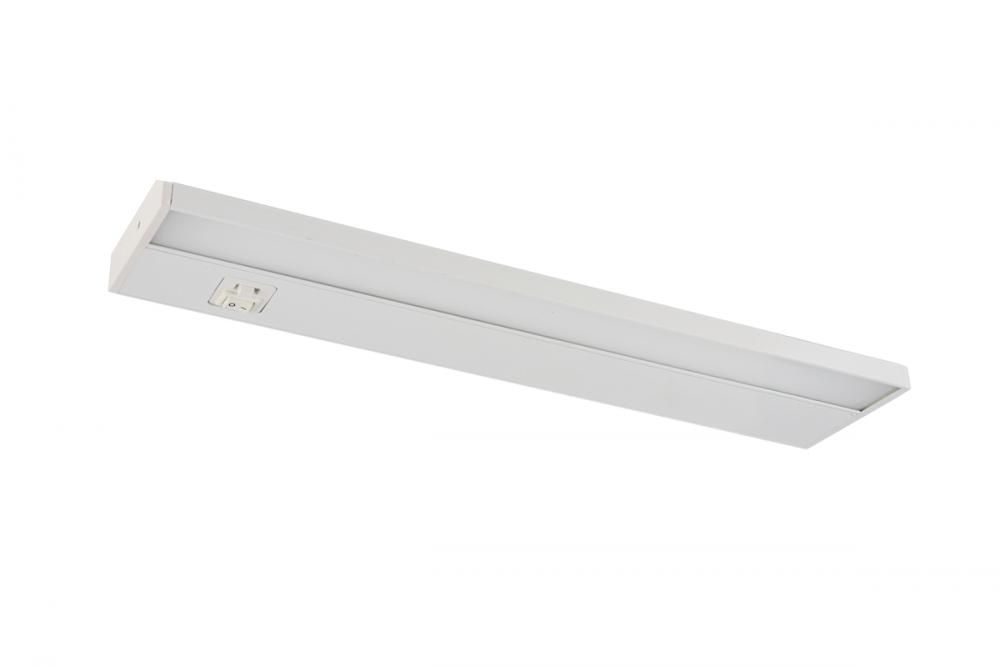

LED Under Cabinet Lights, 2700k/3000k/4000k, 106 Degree, Cri90, ETL, 10w, 65w Equivalent, 50000hrs (HXWJ4)
The new three in one modular dimmable LED undercabinet fixture with switchable color temperatures, a low profile housing and glare-free acrylic lens. Dimmable with most standard 2 wire and cl dimmers. Microswitch on the housing can be set to 2700K, 3000K, 4000K. Low profile housing hides easily less than one inch high. Full length acrylic lens diffuses light evenly over the work area. Multiple connection points hold the PC board firmly against heat sink, optimizing heat dissipation and extending LED life.
Downloads
Product Specification
Item #
HXWJ4
Dimensions
Height: 0.94"
Width: 3.63"
Length: 16.00"
Additional product details
Internal #
HXWJ4
Category
Undercabinet
Subcategory
LED Undercabinet Lights
Finish
White
Style
Traditional
Option
Title 24 , Damp Rated , LED , Prop 65
Category
Undercabinet Kitchen Light
Finish
White
Option
Prop 65 , Title 24
Family
Graysen
Bulb Dimmable
Yes
Bulb Shape
Rectangular
Bulb Type
Integrated LED
Introduction Date
09/01/2017
Kelvin
2700, 3000, 4000
Lumens / Light Output
900
Ship Carton Height
1.38
Ship Carton Length
17.13
Ship Carton Width
3.94
Ship Weight
1.18
Vendor Ship Method
Small Parcel, Loose Box
Warranty
1 Year Limited
Weight
1.04
Beam Angle
106
Billable Weight
1
Bulb CRI
90
Bulb Wattage 2
10 W
Canopy
Yes
Country Of Origin
China
DLC
No
Energy Star
No
Estimated Yearly Energy Cost
1.2
Housing Material
Aluminum
Input Voltage
120 V
LED Type
Hongli
Lens
PC
Life Based on 3hrs Day
3.26
Location Rating
Wet Rated, Damp Rated
Lumens Watt
90
Number of Boxes
1
Power Factor
>0.9
Prop 65
Yes
Prop 65 Chemical
Lead
Prop 65 Description
Warning: this product can expose you to chemicals, including lead and lead compounds, which are known to the state of california to cause cancer and birth defects or other reproductive harm.for more information go to www.p65warnings.ca.gov
Rated Life Hours
35000
Safety Rating
ETL Approved
Title 20
No
Title 24
Yes
Total Carton Weight
1.18
Volume
0.05
Watt Equivalent
50 W


Other Details:
  • Estimated yearly energy cost: .2045 (based on 3 hours/day, 11¢/kwh; cost depends on rates and use). average life based on 3 hours per day is 35000 hours
  • Measures 16 in in length, 3.625 wide, 0.94 high
  • Provides 900 lumens with cri of 90 and 10 watts
Recommended Items
Call for Price
Qty:
BASE PRICE:
$
38
00
/ / 1
($38.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer has 114 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
